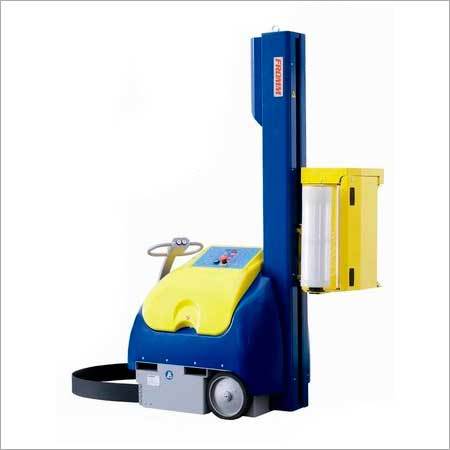

Robot Stretch wrapping Machine

Robot Stretch wrapping Machine Specification

Usage
Industrial Packaging

Features
Touch Panel Operation, Emergency Stop, High Maneuverability

Application
Pallet Stretch Wrapping

Noise Level
Less Than 70 dB

Power Supply
Single Phase

Type
Robot Stretch Wrapping Machine

Material
Mild Steel (MS)

Feature
Mobile Robot, Battery Operated, Adjustable Wrapping Parameters

Auxiliary Packaging Machine Type
Stretch Wrapper

Capacity
20-25 Pallets per Hour

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Power
750 W

Voltage
220-240 V

Weight (kg)
Approximately 350 kg

Dimension (L*W*H)
1100 x 900 x 2300 mm

Color
Yellow-Grey

Max Wrapping Height
2200 mm

Max Pallet Size
1200 x 1200 mm

Wheel Type
Non-marking Rubber Wheels

Mobility
Self-Propelled for Flexible Use

Charging Time
8-10 Hours

Film Thickness Range
17-35 micron

Battery Type
Maintenance-free rechargeable battery

Operating Time per Charge
8 Hours (Approx.)

Film Carriage
Powered Pre-Stretch

Safety Features
Obstacle Detection, Safety Bumper

Suitable Film Material
LLDPE Stretch Film

Minimum Turning Radius
900 mm

Robot Stretch wrapping Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Units Per Month

About Robot Stretch wrapping Machine

Robot Stretch wrapping Machine

Robot Stretch Wrapping Machines we deal in are capable to wrap all load sizes, irrespective of their weight. Offered range is highly capable to execute the wrap in multiple locations in a shortened period of time with their comfort of portability. Battery-powered by on board batteries these can offer various loads wrapped on a single charge, which depend on load size. The robotic wrappers have been tested in the field as the most dependable and quality-oriented equipments of wrapping. Robot Stretch Wrapping Machines we offer come with safety front bumpers, which automatically carry the machine to a dead stop under any impact, devising these as safe and precocious.

Key Points :

Audible sound signaling, come with unobstructed wrapping procedure.
The wrap cycle as well as flash light indicate that the machines are in operation.
Employed for mechanically wrapping palatalized loads, pre-stretch technology, photo-eye pallet detection.
The color touch control panel permit the switching between variable pre-stretch alternatives as well as force-to-load calibrations.

Technical details

Max Pallet Height	2.100 mm
Automation Grade	Automatic
Usage/Application	Stretch Wrapping
Frequency	50 Hz
Phase	1 phase
Voltage	230 V / 1 kW
Brand	Kd International

High-performance and Flexible Automation

The Robot Stretch Wrapping Machine delivers automated, high-speed wrapping for your packaging needs, capable of serving diverse industries. With its self-propelled design, powered pre-stretch, and adjustable parameters, you can easily move the unit where needed. Its mild steel construction and robust battery guarantee efficiency and durability, while a maximum wrapping height and adjustable settings cater to varied pallet sizes.

Safety and Usability in Operation

Equipped with advanced safety features such as obstacle detection and a safety bumper, the machine prioritizes operator protection and reduced workplace incidents. The intuitive touch panel and emergency stop make operation straightforward, and low noise levels keep the environment comfortable. Maintenance-free rechargeable batteries ensure minimal downtime with around 8 hours of working time per charge.

FAQs of Robot Stretch wrapping Machine:

Q: How does the Robot Stretch Wrapping Machine improve packaging efficiency?

A: This machine streamlines industrial packaging by automatically wrapping pallets with consistent tension and coverage, reducing manual labor and increasing throughput to approximately 20-25 pallets per hour.

Q: What types of film and pallet sizes can the machine accommodate?

A: The wrapper supports LLDPE stretch films with thicknesses from 17 to 35 microns and can handle pallet sizes up to 1200 x 1200 mm, making it suitable for a broad range of industrial products.

Q: When should I recharge the battery and how long does it last?

A: The built-in maintenance-free rechargeable battery should be charged for 8-10 hours to ensure optimum performance. Once fully charged, the machine operates for around 8 hours, suitable for standard shifts.

Q: Where is this robot stretch wrapping machine best used?

A: It is designed for industrial settings like warehouses, manufacturing plants, and distribution centersespecially where mobility, automation, and pallet consistency are critical.

Q: What is the process for adjusting wrapping parameters?

A: Operators can easily adjust wrapping settings, such as film tension and wrapping cycles, via the touch panel control interface, ensuring each pallet is wrapped according to specific requirements.

Q: Are there safety measures included in the machine?

A: Yes, the machine includes obstacle detection and a safety bumper, along with an emergency stop button, to protect operators and prevent accidental damage during wrapping operations.

Q: What are the primary benefits of using this robot stretch wrapping machine?

A: The primary benefits include automated, consistent pallet wrapping, reduced workplace injuries, flexible operation thanks to self-propulsion, and a quick turnaround with high batteries and adjustable controlsall enhancing productivity and reducing costs.
