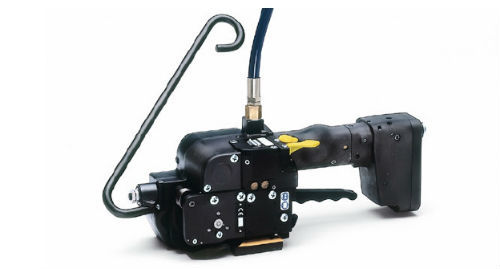

Pneumatic Polyester Strapping Machine

Pneumatic Polyester Strapping Machine Specification

Material
High-strength steel construction with components suitable for polyester (PET) strapping

Size
Compact, hand-held design; standard tool dimensions: approx. 275 mm x 115 mm x 130 mm

Color
Black and Silver (as per image shown)

Width
Suitable for strap widths from 13 mm to 19 mm

Weight
Approximately 3.8 kg

Usage
Manual operation; tensioning, sealing and cutting of polyester (PET) straps with pneumatic power

Application
For strapping, packaging, and securing heavy loads in industries such as logistics, warehouses, shipping, and manufacturing

About Pneumatic Polyester Strapping Machine

Technical details

Max. Air Pressure	6.0 bar / 87 psi
Working Pressure	5.5 bar / 80 psi
Weight	5.4 kg / 11.9 lbs
Tension Force	800-3700 (adjustable) (max. tension is dependent on strap quality)
Sealing Method	Friction weld seal
Model No.	P356

Efficient and Powerful Pneumatic Strapping

Designed for industrial applications, this machine uses high-pressure pneumatic power to deliver rapid strapping cycles. It accommodates strap widths from 13 mm to 19 mm and thicknesses of 0.5 mm to 1.27 mm, ensuring adaptability for different packaging requirements. Its friction weld sealing ensures strong and reliable bonds, securing heavy loads with ease. Efficiency and reliability make it a vital addition for any distribution or shipping facility.

User-Friendly and Durable Design

The tool is crafted for comfortable manual operation with a compact, hand-held profile and weighs approximately 3.8 kg. The one-handed pneumatic mechanism simplifies strapping while reducing operator fatigue. Constructed from high-strength steel and durable components, the machine is tailored for continuous use in demanding industrial settings. Replaceable wear parts also ensure easy upkeep and extended tool life.

FAQs of Pneumatic Polyester Strapping Machine:

Q: How do I operate the pneumatic polyester strapping machine?

A: Simply connect the machine to a suitable air compressor (0.5 to 0.8 MPa/72-116 psi), insert the polyester strap, and use the single-hand operation feature to tension, seal, and cut the strap in one smooth process. The compact device is easy to manoeuvre and designed for minimal operator fatigue.

Q: What types of straps and loads is this strapping machine compatible with?

A: This tool is tailored for polyester (PET) straps, supporting widths between 13 mm and 19 mm and thicknesses from 0.5 mm to 1.27 mm. Its suitable for securing and packaging heavy loads, including pallets, crates, and industrial shipments.

Q: When should I choose pneumatic strapping over manual alternatives?

A: Pneumatic strapping is ideal when handling frequent, high-volume packaging demands or heavy industrial loads. The machines high tension range (up to 3500 N) and friction weld sealing offer superior strength and reliability, making it preferable for continuous operation environments.

Q: Where is this strapping machine most commonly used?

A: Its widely utilized across logistics hubs, warehouses, manufacturing plants, shipping centers, and any industrial facility requiring secure and efficient packaging of bulky or heavy items.

Q: What is the process for maintaining the strapping machine?

A: Routine maintenance includes cleaning the components, inspecting for wear, and replacing parts as needed. Most wear parts are easily accessible and replaceable, ensuring minimal downtime during servicing.

Q: What benefits does the pneumatic operation offer?

A: Pneumatic operation provides higher tension and quicker application compared to manual tools, resulting in tighter, more consistent straps and enhanced productivity with reduced physical effort from the operator.
